LayPLAN CAD

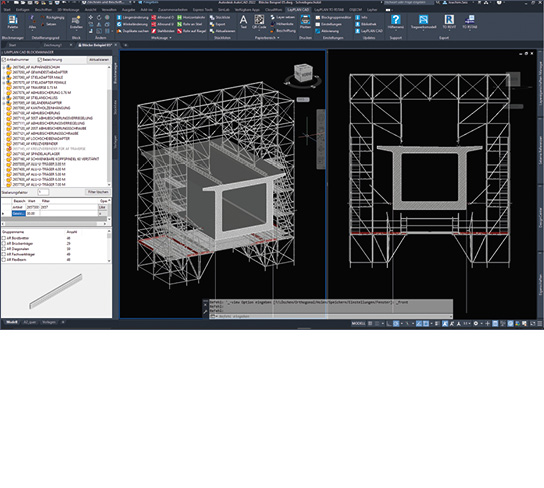

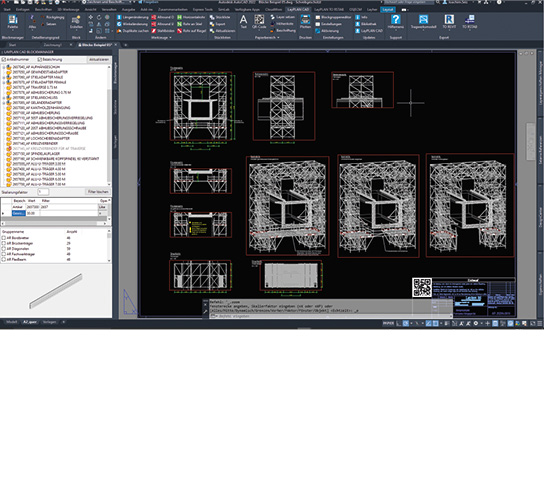

LayPLAN CAD is a plug-in for Autodesk AutoCAD, which is available for individual scaffolding planning. It permits 3-dimensional planning of all types of scaffolding structures, irrespective of their complexity. Alongside the extensive component library, it provides scaffolding planners with design functions for the simple, fast insertion of components. A transfer to visualisation or animation software is also possible without any problem. This allows projects not only to be planned economically and at the same time adapted precisely to actual requirements, but also to be presented professionally to customers.

Added value of LayPLAN CAD

  • Individual scaffolding planning and design in 3D
  • Basic planning can be done in an automated process using LayPLAN CLASSIC – thus saving time
  • Visual conflict checks through realistic rendering
  • Extensive component library with a convenient search function – including prefabricated assemblies and template drawings for even faster design
  • Component preview and automatic component identifications
  • Real-time material list for transport and assembly
  • The digital twin of the scaffolding can be visualised realistically in LayPLAN CAD – for example, for professional presentations to clients
  • The ‘Structural Model’ function enables the model data to be transferred to frame analysis programmes for structural calculations as part of project-specific stability analyses. Furthermore, LayPLAN TO RSTAB, when used in conjunction with LayPLAN CAD and AutoCAD, provides a user-friendly interface for transferring all structurally relevant data. Unlike the re-modelling that would otherwise be necessary, this avoids sources of error and saves time during the design phase.
  • Use of the 3D scaffolding model in the innovative SIM2Field XR app – for example, to present the scaffolding solution in the real environment using augmented reality, or as digital assembly support
Target group and usage
  • Scaffolding erectors.
  • Construction companies.
  • Event engineers.
  • Engineering and planning offices.
  • In both the offer and implementation phases.
  • Prior knowledge of AutoCAD and a good feel for IT are an advantage.
System requirements
  • CAD system: AutoCAD, AutoCAD Mechanical, AutoCAD Architecture Versions 2017 – 2022
  • Operating system: Windows 7, Windows 10, Windows 11
  • Processor: High-speed processor, e.g. > 3.0 GHz
  • RAM: Recommended 16 GB, 32 GB is optimal
  • Graphics card: Recommended: 4 GB GPU with 106 Gbit/s and compatible with DirectX 11, e.g. NVIDIA Quadro P2200 with 5GB GDDR5X, max. 140GB/s
  • Hard drive: Recommended total capacity: 512 GB, SSD if possible
